IEC60092 STANDARD Offshore & Marine Cables |
|
|
MariTox Marine Flame Retardant Power & Control Cables
MTX300 0.6/1 kV HEPR Insulated, LSOH (SHF1) Sheathed,
Screened Flame Retardant Power & Control Cables (Single Core)
Application
These cables are used for fixed installations on ships and offshore units in all locations and
on open deck. The good screening qualities of the copper braid also reduce radio interference
and electrical influences to electronics installations. These cables are flame retardant, low
smoke & halogen free.
Standards
DIN 89160/98
IEC 60092-353
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

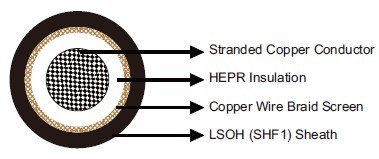

Construction
Conductors: Class 2 stranded copper conductor.
Insulation: HEPR.
Overall Screen: Copper wire braid.
Outer Sheath: LSOH (SHF1).
Core Identification
Single core: Natural colour (beige).
Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 6×OD
Temperature Range: -20℃ ~ +75℃
Dimensions and Weight
Part No. |
Construction
No. of cores×Cross
section(mm²) |
Nominal Insulation
Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall
Diameter mm |
Nominal Weight kg/km |
MTX300-1G7MZ1-R-1C4 |
1×4 |
0.7 |
1.2 |
7.3 |
110 |
MTX300-1G7MZ1-R-1C6 |
1×6 |
0.7 |
1.2 |
8.3 |
140 |
MTX300-1G7MZ1-R-1C10 |
1×10 |
0.7 |
1.2 |
9.3 |
190 |
MTX300-1G7MZ1-R-1C16 |
1×16 |
0.7 |
1.2 |
10.3 |
270 |
MTX300-1G7MZ1-R-1C25 |
1×25 |
0.9 |
1.2 |
12.3 |
380 |
MTX300-1G7MZ1-R-1C35 |
1×35 |
0.9 |
1.2 |
13.3 |
480 |
MTX300-1G7MZ1-R-1C50 |
1×50 |
1.0 |
1.3 |
15.3 |
660 |
MTX300-1G7MZ1-R-1C70 |
1×70 |
1.1 |
1.4 |
17.3 |
900 |
MTX300-1G7MZ1-R-1C95 |
1×95 |
1.1 |
1.4 |
19.5 |
1170 |
MTX300-1G7MZ1-R-1C120 |
1×120 |
1.2 |
1.5 |
21.0 |
1410 |
MTX300-1G7MZ1-R-1C150 |
1×150 |
1.4 |
1.6 |
22.8 |
1750 |
MTX300-1G7MZ1-R-1C185 |
1×185 |
1.6 |
1.6 |
24.8 |
2160 |
MTX300-1G7MZ1-R-1C240 |
1×240 |
1.7 |
1.7 |
27.8 |
2770 |
MTX300-1G7MZ1-R-1C300 |
1×300 |
1.8 |
1.8 |
30.3 |
3440 |
|
